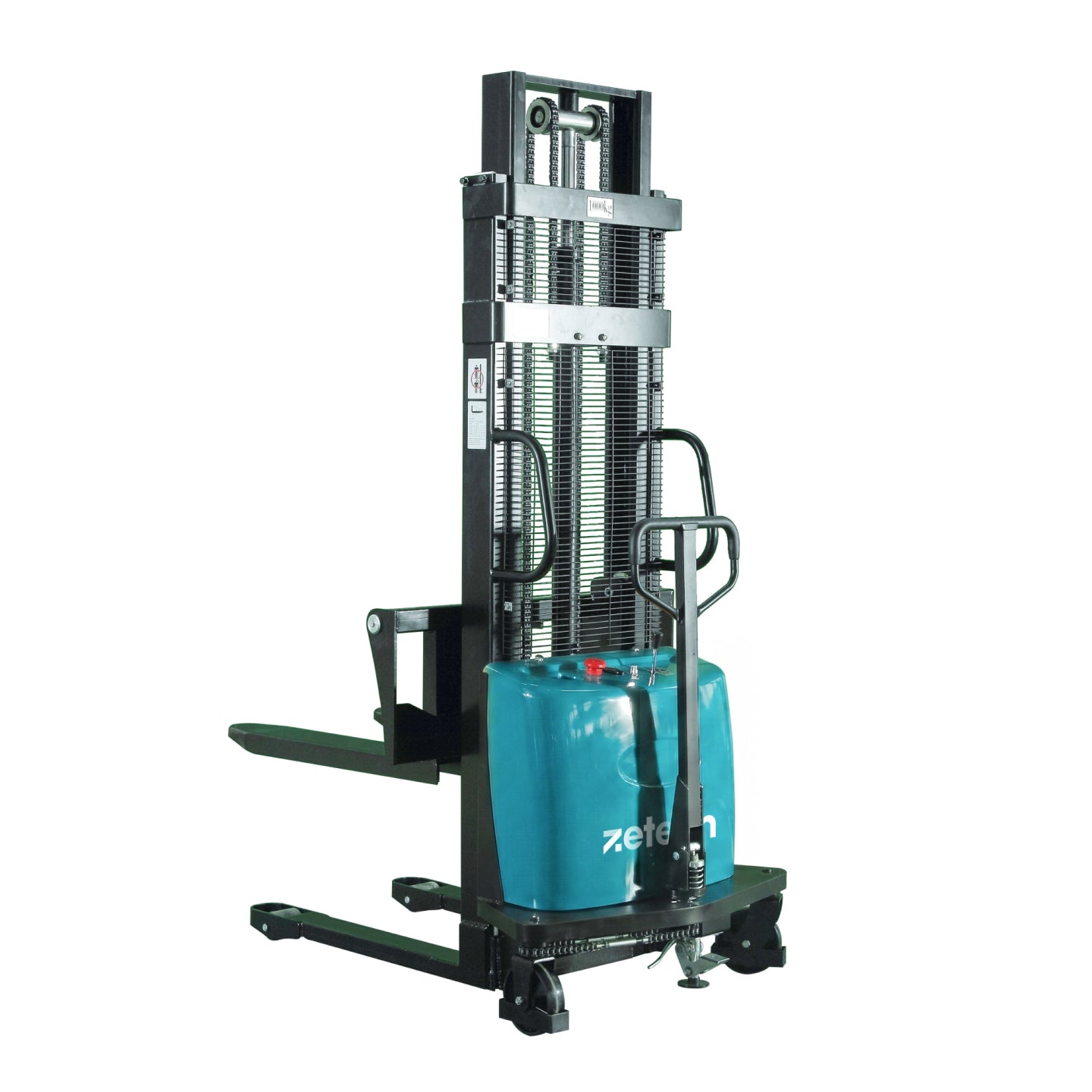

Semi-Electric Stacker
BDD1530
$2,999.00
- Lifting Capacity 3,307 lbs
- Lift Height 118.1 in
- Overall Height (Mast Lowered) 81.9 in
- Overall Height (Mast Extended) 133.9 in
- Overall Fork Width 27.2 in (adjustable 12.6 – 39 in)
- Fork Length 43.3 in
- Fork Width (each) 6.3 in
- Fork Thickness 2.4 in
- Lowered Fork Height 3.3 in
- Load Center 19.7 in
- Overall Length 69.5 in
- Overall Body Width 44.9 in
- Min. Turning Radius 57.3 in
- Min. Aisle Width 77.4 in
- Min. Ground Clearance ...
- Steer Wheels Polyurethane, 7.1 x 2 in
- Load Wheels Polyurethane, 3.1 in dia.
- Service Weight 926 lbs
- Battery 12 V / 80 Ah sealed lead-acid
- Lift Motor 1.6 kW
- Lifting Speed (loaded/unloaded) 3.1 / 3.9 in/s
- Operation Powered lift, manual push
Features
- Heavy-Duty C-Channel Mast:
Constructed using thickened structural C-channel steel that minimizes mast deflection and extends mast service life under full loads.
- Deep Discharge Battery Protection:
Equipped with an integrated low-voltage cutoff device to protect the battery from over-discharging and extend overall battery life.
- Reinforced Fork Rib Architecture:
Features heavy-duty welded reinforcement ribs under the forks that reduce structural deformation and improve load stability.
- Maintenance-Free Battery:
Powered by a sealed, industrial-grade battery that delivers consistent power with no electrolyte top-ups required.
- Low-Noise Pump Station:
A premium hydraulic power unit delivers smooth, low-vibration lifting and lowering with minimal noise.
