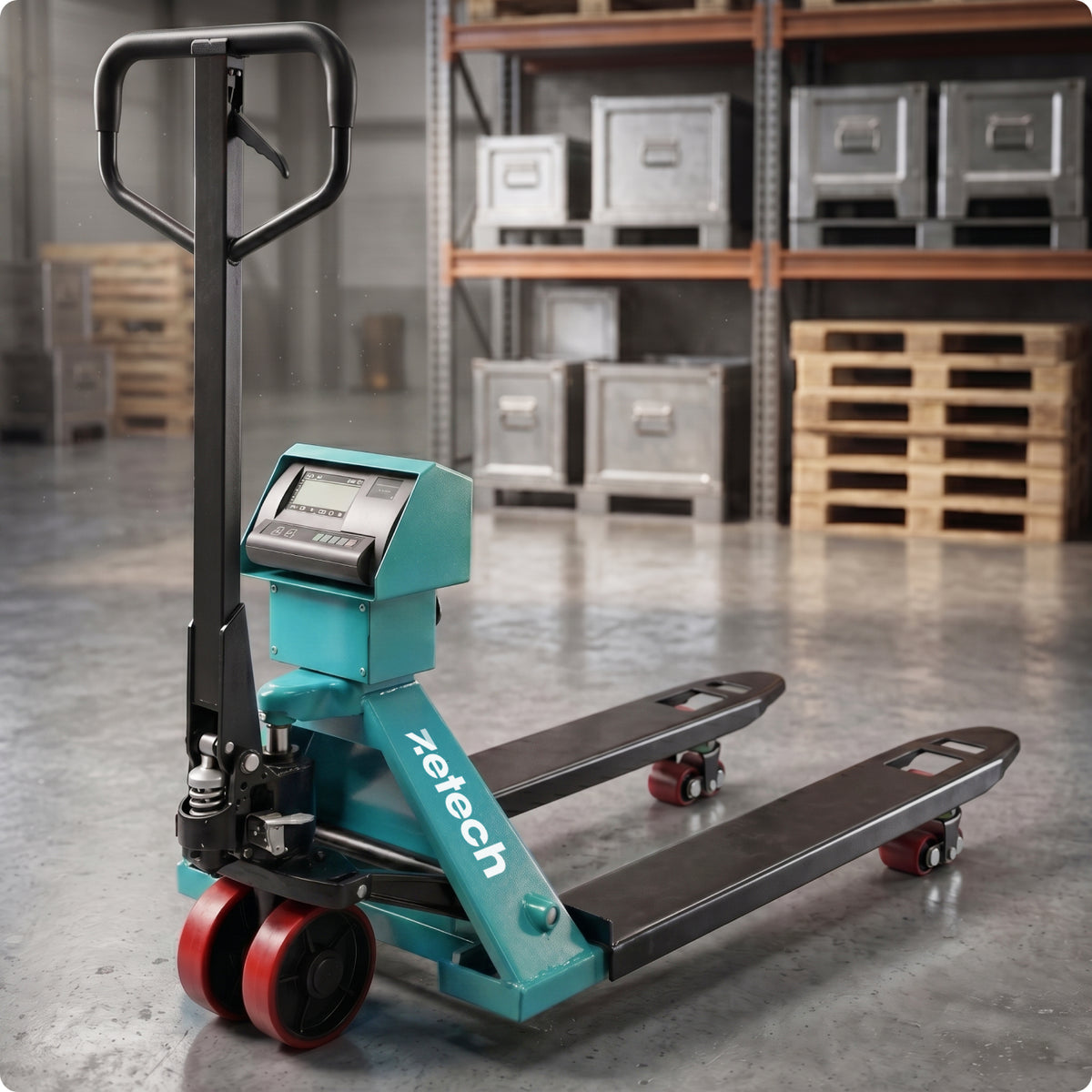

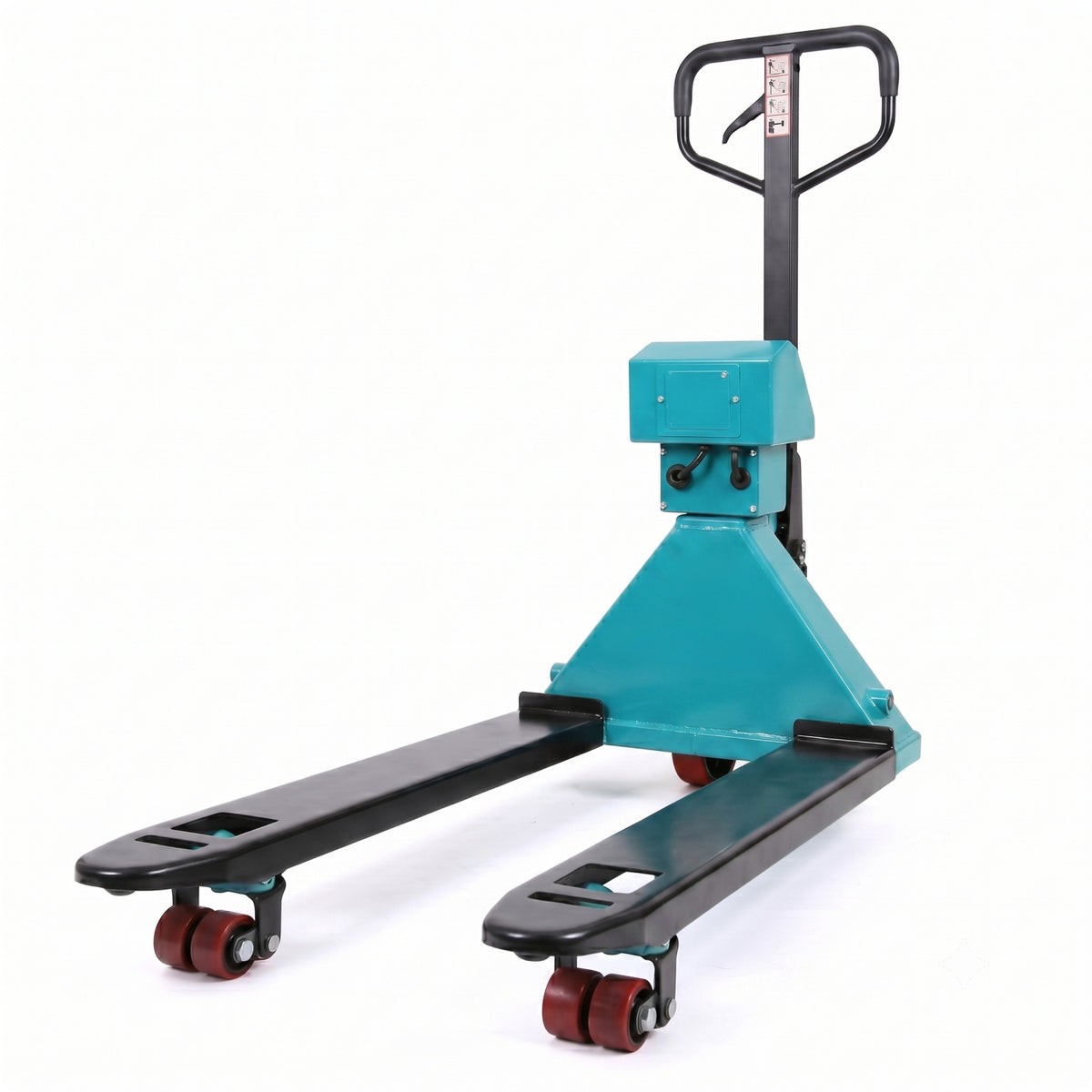

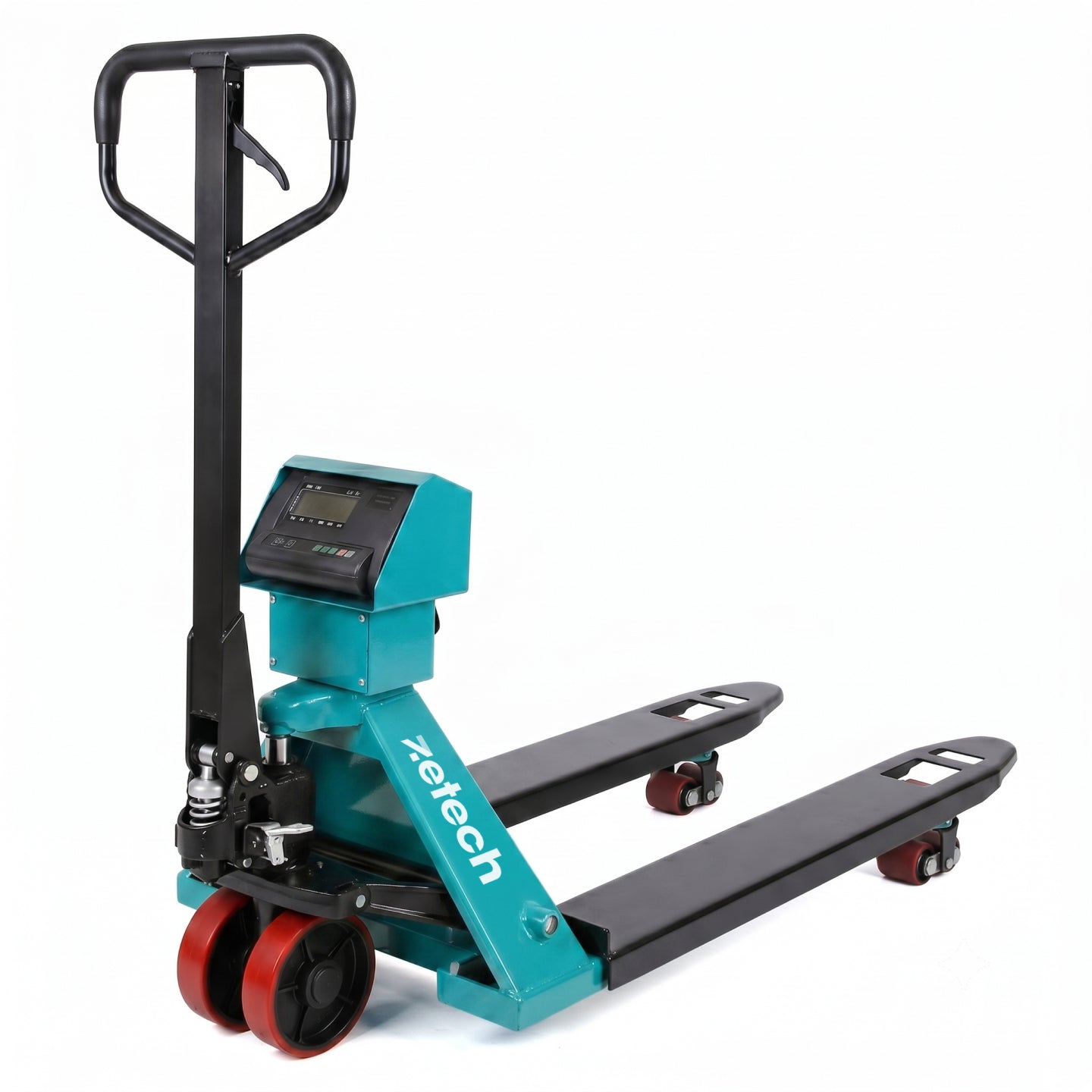

Pallet Jack Scale
DB2.5T Scale
- Lifting Capacity 5,500 lbs
- Weighing Capacity 5,500 lbs
- Division (Readability) ...
- Weighing Accuracy ±1% of full scale
- Legal for Trade No — not NTEP certified
- Fork Size 27" W x 45.3" L
- Fork Width (each) 7.1 in
- Width Between Forks 12.8 in
- Raised Fork Height 7.9 in
- Lowered Fork Height 3.3 in
- Load Center 24 in
- Overall Length 66.7 in
- Min. Turning Radius 55.7 in
- Min. Aisle Width 74.9 in
- Min. Ground Clearance 1 in
- Steer Wheels Polyurethane, dual, 7.1 x 2 in
- Load Wheels Polyurethane, single, 2.9 x 3.7 in
- Wheelbase 49.8 in
- Service Weight 214 lbs
- Indicator Battery 3.7 V / 4 Ah rechargeable lithium
- Indicator Protection IP65
Features
- Built-In Weighing System:
Weigh the load right on the forks to within ±1% of full scale — enough to check incoming shipments and catch mistakes without a trip to the floor scale. Not NTEP certified, so it is intended for internal checks rather than trade transactions.
- Heavy-Duty Precision Sensors:
Equipped with industrial-grade, durable load cells engineered for long-term consistency.
- IP65 Protected Indicator:
The indicator is fully IP65-rated to protect electronics from moisture, dust, and harsh warehouse environments.
- Leak-Proof Heavy-Duty Pump:
Features a rugged, one-piece cast hydraulic pump designed to reduce leak points and simplify maintenance.
- Heavy-Duty Polyurethane Wheels:
Wear-resistant polyurethane steer and load wheels roll smoothly and quietly under heavy loads, without marking your floors.
- HD Display & Long Battery Life:
Equipped with a high-definition digital indicator and an efficient lithium battery for extended operation.
