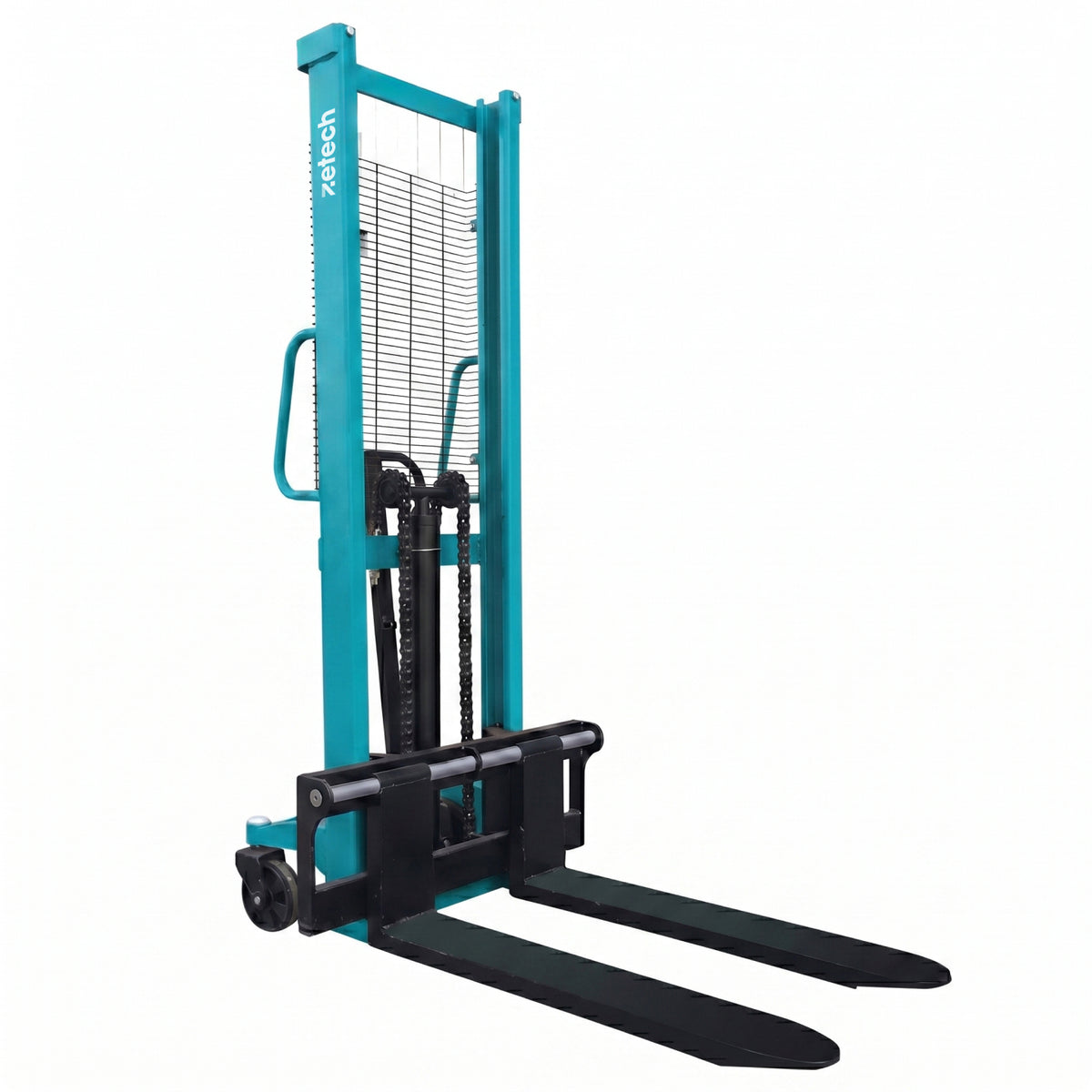

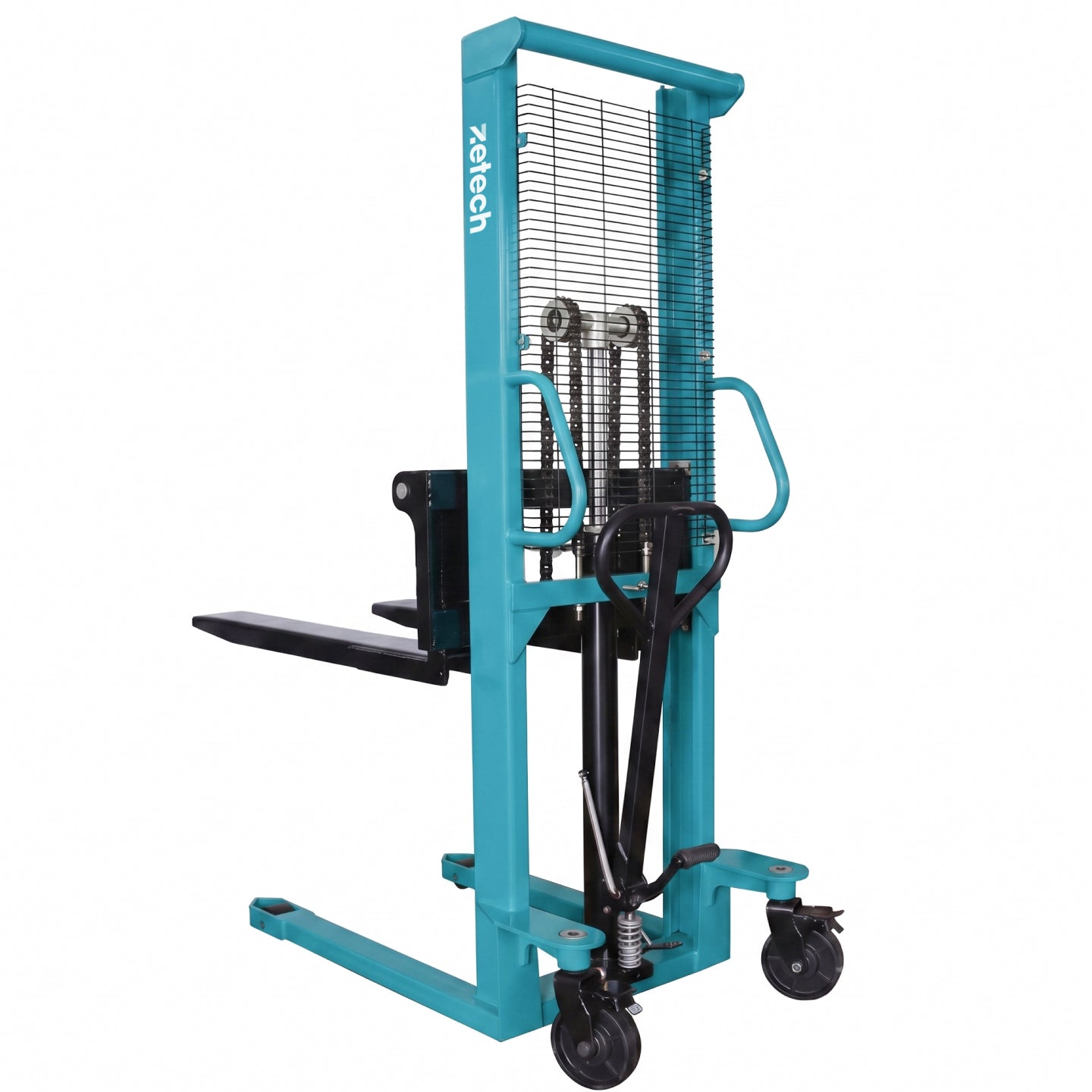

Manual Pallet Stacker
CTY2
$1,199.00
- Lifting Capacity 4,409 lbs
- Lift Height 63 in
- Overall Height (Mast Lowered) 76.8 in
- Overall Height (Mast Extended) 76.8 in
- Overall Fork Width (adjustable) 13.4 – 39 in
- Fork Length 43.3 in
- Fork Width (each) 6.3 in
- Fork Thickness 2.4 in
- Lowered Fork Height 3.5 in
- Load Center 19.7 in
- Overall Length 66.9 in
- Overall Body Width 37.4 in
- Min. Turning Radius 57.3 in
- Min. Aisle Width 86.6 in
- Min. Ground Clearance ...
- Steer Wheels Nylon, 7.1 x 2 in
- Load Wheels Nylon, 3.1 x 2.8 in
- Service Weight 370 lbs
Features
- Reinforced C-Channel Mast:
Constructed with heavy-duty, thickened C-channel steel that minimizes mast deflection and keeps the mast rigid under full loads.
- Precision Robotic-Welded Frame:
Features automated robotic welding throughout the chassis for long-term durability and resistance to deformation under repeated heavy loads.
- Hose Burst Safety Valve:
An integrated safety valve in the hydraulic circuit holds the load if a hose fails, preventing the forks from dropping suddenly.
- Fully Adjustable Forks:
Designed with versatile, easy-to-adjust forks to accommodate varying pallet widths and specialized cargo sizes.
- Heavy-Duty Lifting Chain:
Built with a thickened high-tensile lifting chain for smooth, controlled elevation during heavy material handling.
- Dual-Action Manual Lifting:
An ergonomic dual-control setup lets the operator raise the load with either the hand pump or the foot pedal.
