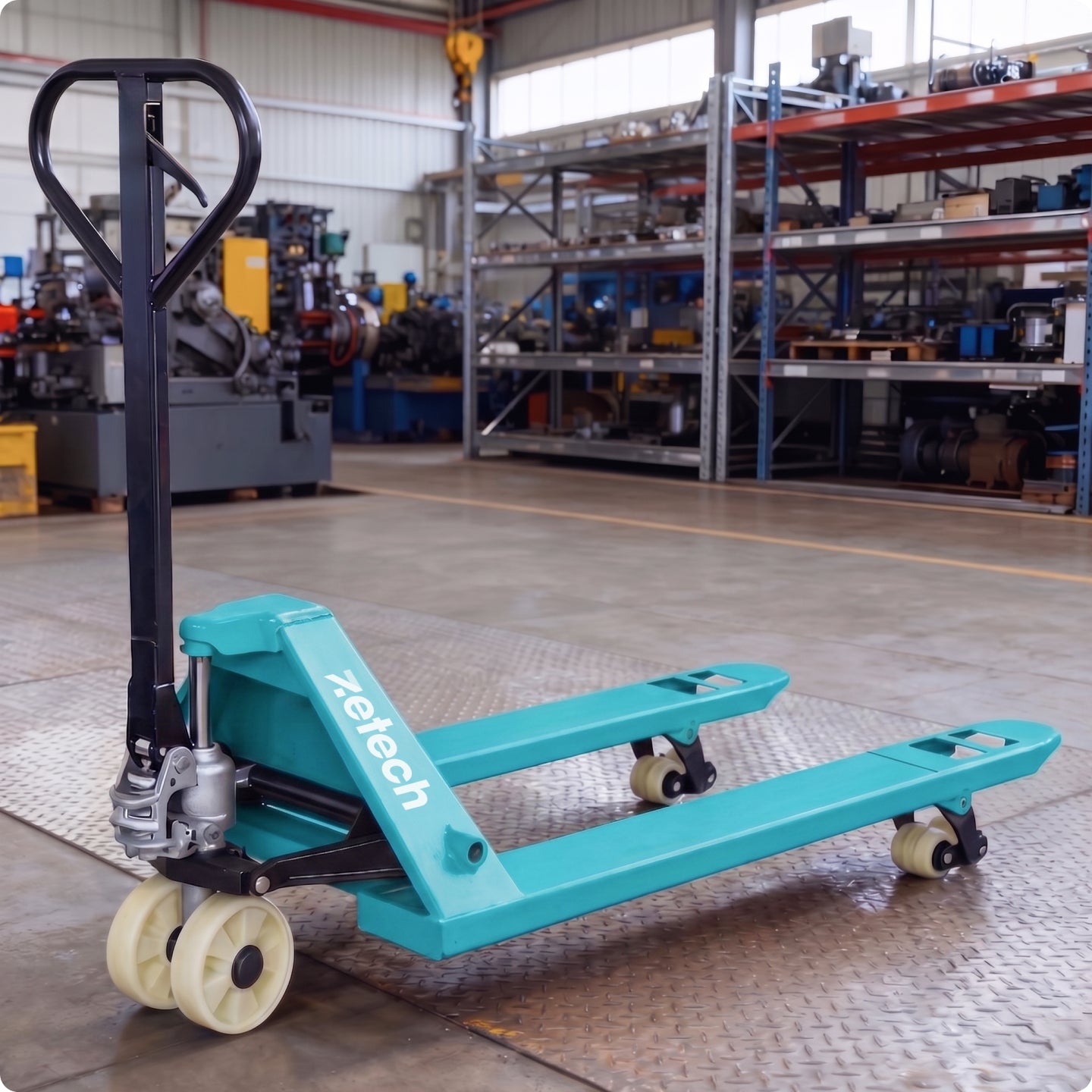

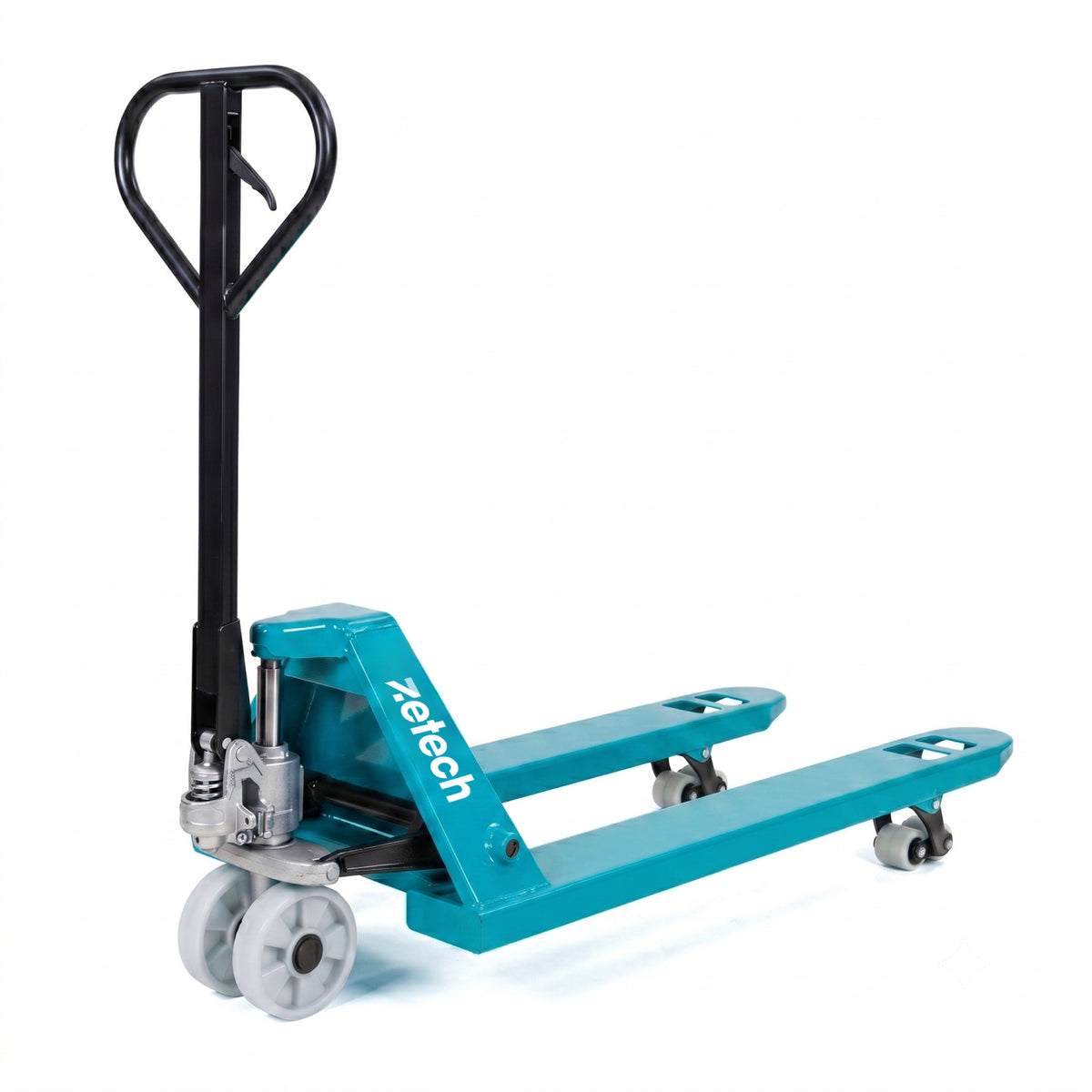

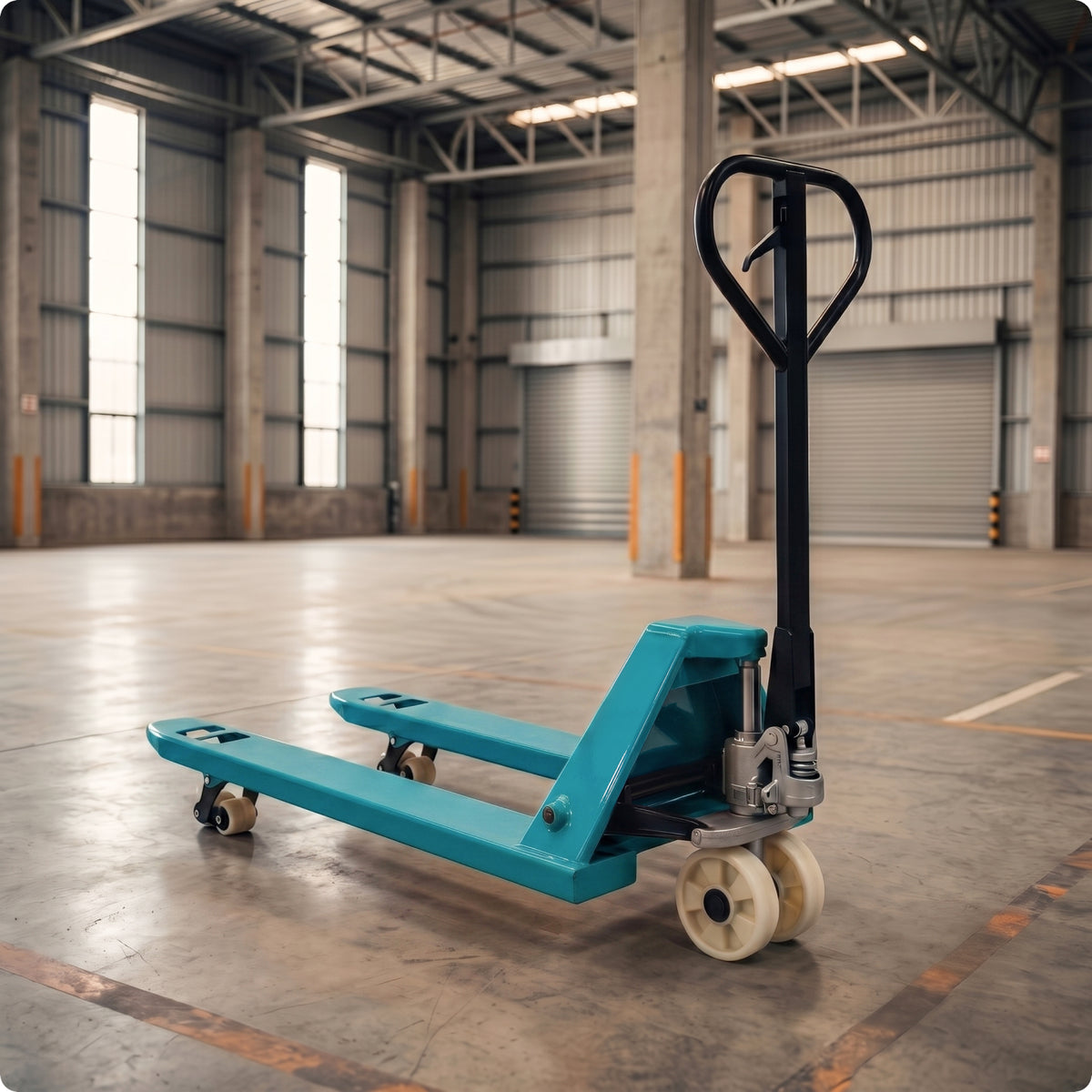

Manual Hydraulic Pallet Jack
DB2.5T
- Lifting Capacity 5,500 lbs
- Fork Size 27" W x 47.2" L
- Fork Width (each) 6.3 in
- Width Between Forks 14.4 in
- Raised Fork Height 7.9 in
- Lowered Fork Height 3.3 in
- Load Center 24 in
- Overall Length 63.4 in
- Min. Turning Radius 52.8 in
- Min. Aisle Width 71.3 in
- Steering Arc 180°
- Min. Ground Clearance 1 in
- Steer Wheels Nylon, dual, 7.1 x 2 in
- Load Wheels Nylon, tandem, 3.1 x 2.8 in
- Wheelbase 47.2 in
- Service Weight 176 lbs
Features
- Anti-Rollover 180° Steering:
Engineered with tight 180-degree maneuverability and an anti-tip design for light, effortless steering that helps reduce the risk of tipping.
- Dual Lowering Control:
Equipped with an intuitive dual-control system, allowing operators to lower the load easily using either the foot pedal or the hand lever.
- Overload Protection Valve:
Features a hydraulic pump safety valve that protects the pump from overload damage and extends its service life.
- Heavy-Duty Forged Lifting Arm:
Built with a premium forged, one-piece lifting arm that resists bending under maximum stress while maximizing structural load capacity.
- Robotic-Welded Heavy-Gauge Forks:
Constructed using high-precision automated welding for consistent, repeatable weld quality across every fork.
- Reinforced Fork Architecture:
Specially designed with under-fork reinforcement ribs that reduce flexing and improve stability under heavy loads.
