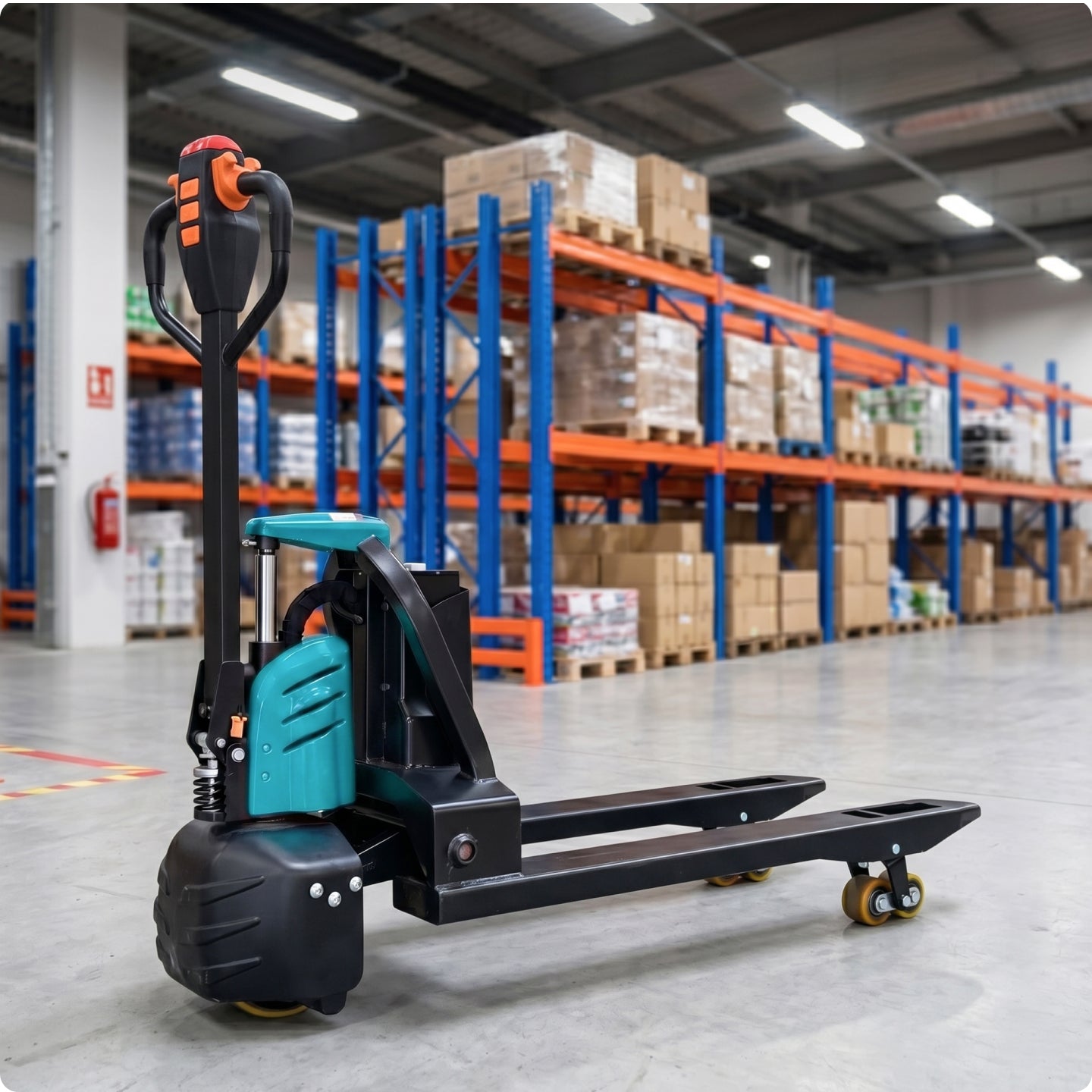

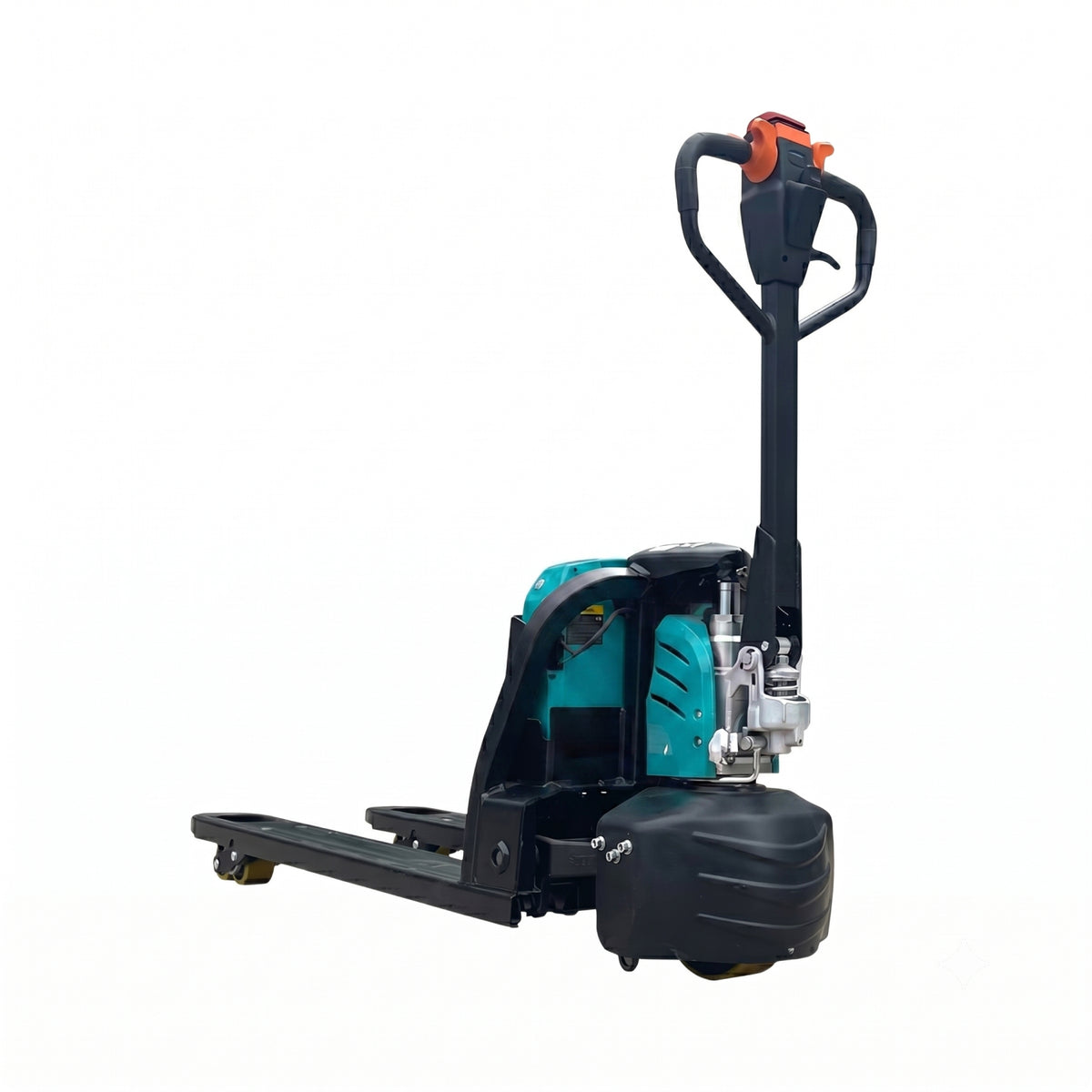

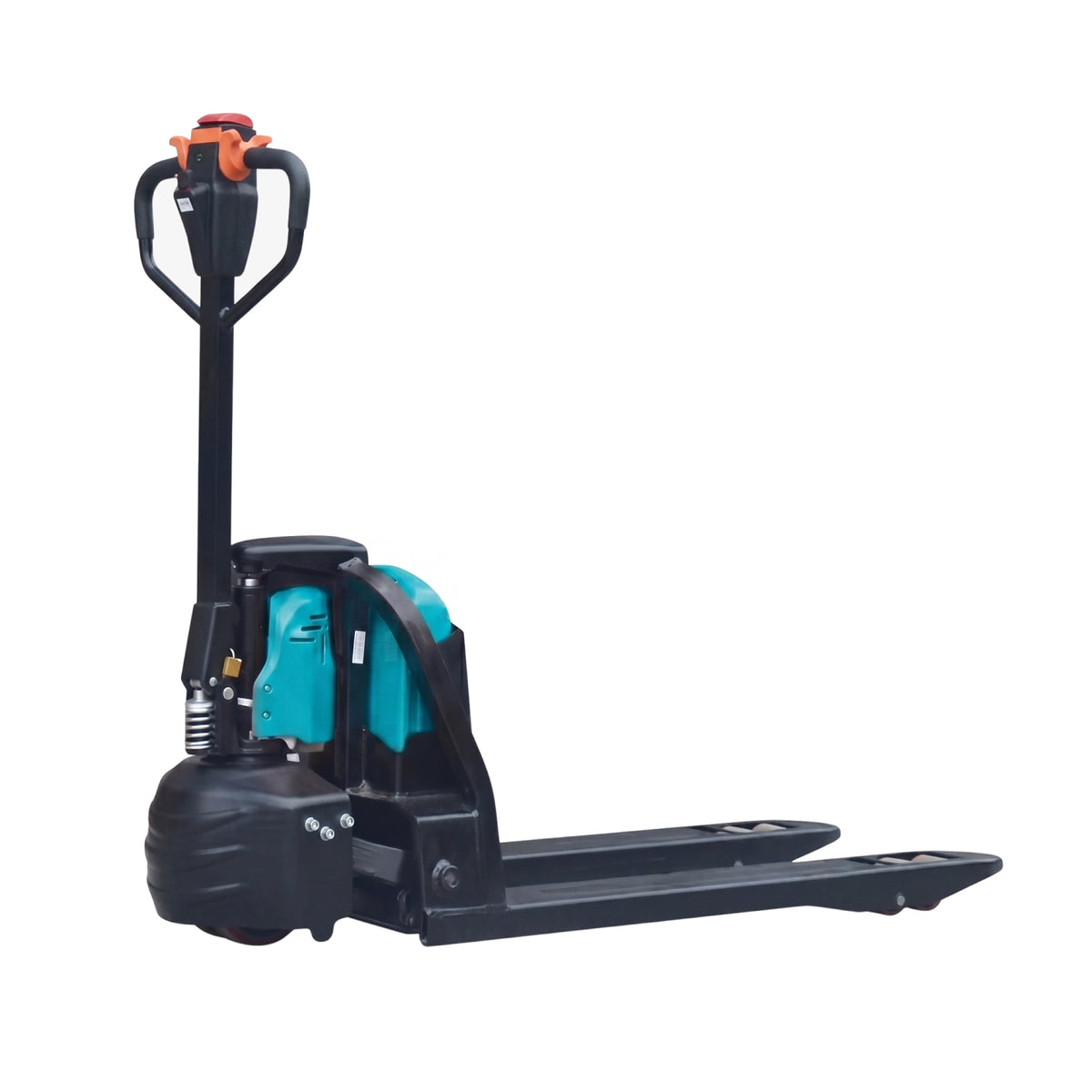

Full Electric Pallet Jack
CBD30
$1,899.00
- Lifting Capacity 4,409 lbs
- Fork Size 21.7" or 27" W x 45.3" L
- Fork Width (each) 5.9 in
- Width Between Forks 9.8 in (21.7" forks) / 15.2 in (27" forks)
- Raised Fork Height 7.9 in
- Lowered Fork Height 3.3 in
- Fork Thickness 2 in
- Load Center 24 in
- Overall Length 63.1 in
- Min. Turning Radius 55 in
- Min. Aisle Width 71 in
- Min. Ground Clearance 1.4 in
- Drive Wheel Polyurethane, 8.3 x 2.8 in
- Load Wheels Polyurethane, tandem, 3.1 x 2.4 in
- Wheelbase 48.9 in
- Service Weight 353 lbs
- Battery 48 V / 30 Ah Lithium-ion
- Drive Motor (S2 60 min) 1 kW
- Lift Motor (S3 15%) 0.8 kW
- Travel Speed (loaded/unloaded) 2.6 / 2.8 mph
- Gradeability (loaded/unloaded) 5 / 10 %
Features
- Fully Electric Operation:
Powered lifting and driving in a compact footprint, built for moving pallets through tight aisles without operator effort.
- Ergonomic Control Handle:
A slip-resistant rubber grip and one-touch start keep the controls simple and reduce operator fatigue over a full shift.
- Flexible Power Options:
Available with either a high-efficiency lithium-ion or a standard lead-acid battery to suit your operation.
- Heavy-Duty Polyurethane Drive Wheel:
A wear-resistant polyurethane drive wheel rolls smoothly and quietly under heavy loads, without marking your floors.
- Drive-Wheel Foot Guard:
A protective cover over the drive wheel is available as an option for added operator protection.
