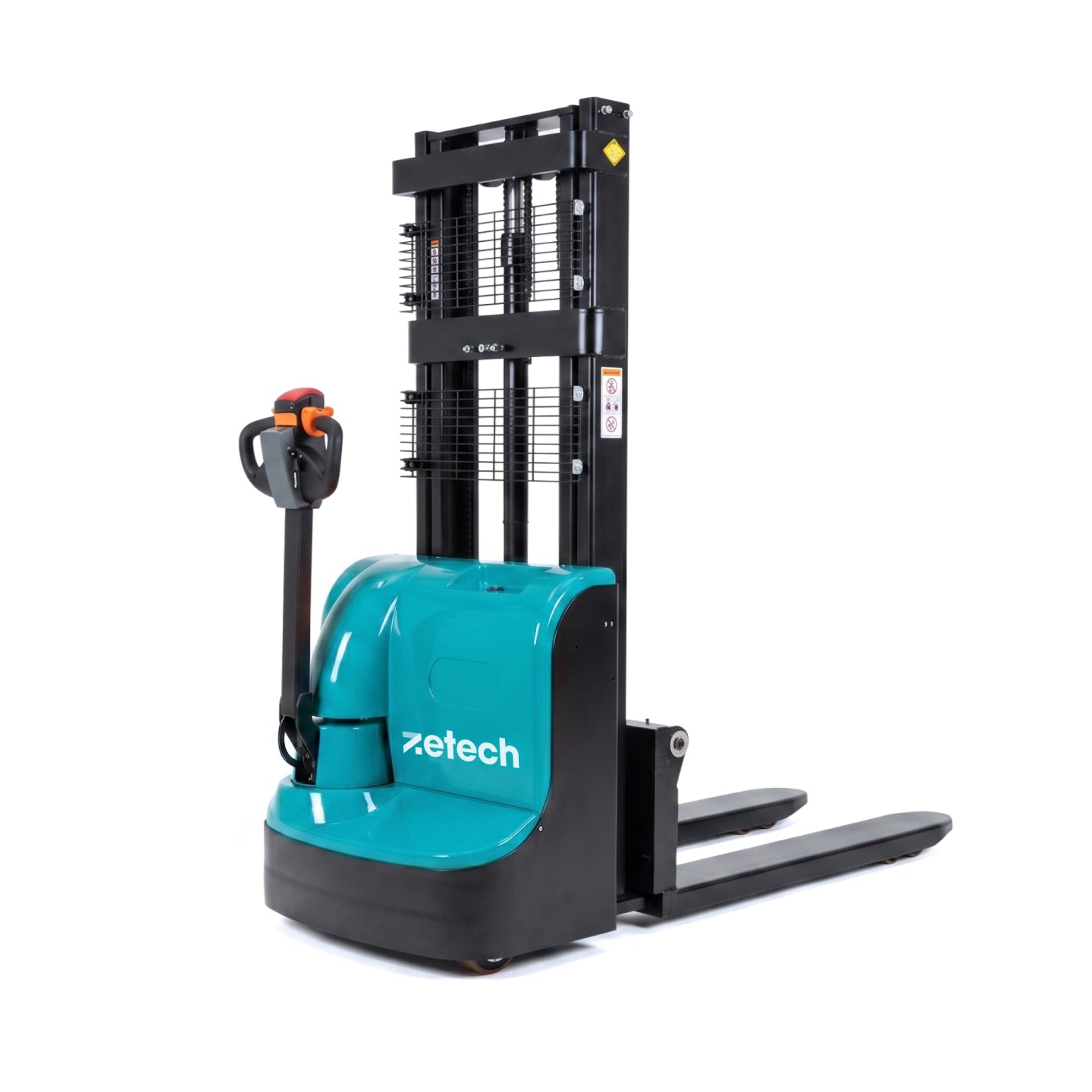

Fully Electric Walkie Stacker
CDD15A
- Lifting Capacity 3,307 lbs
- Lift Height 118.1 in
- Overall Height (Mast Lowered) 81.9 in
- Overall Height (Mast Extended) 137 in
- Overall Fork Width 27.2 in
- Overall Body Width 31.5 in
- Fork Length 45.3 in
- Fork Width (each) 3.9 in
- Fork Thickness 1.6 in
- Lowered Fork Height 3.3 in
- Load Center 19.7 in
- Overall Length 69.5 in
- Min. Turning Radius 57.3 in
- Min. Aisle Width 81.3 in
- Min. Ground Clearance ...
- Drive Wheel Polyurethane, 8.3 x 3.1 in
- Load Wheels Polyurethane, tandem, 3.1 x 2.7 in
- Balance Wheels Polyurethane, (... in)
- Service Weight 1,109 lbs
- Battery 24 V / 80 Ah maintenance-free lead-acid
- Controller Curtis 1212
- Drive Motor / Lift Motor 0.75 kW / 3 kW
- Travel Speed (loaded/unloaded) 2.8 / 3.1 mph
- Operation Powered lift and travel
Features
- Compact Chassis & High Visibility:
Engineered with an ultra-compact frame for tight-space navigation, paired with an open-mast design for clear forward visibility.
- 4-Point Stable Architecture:
Features a 4-point support structure with a side-mounted control handle and low center of gravity for improved lateral stability.
- Precision Creep Speed Control:
Equipped with a slow-speed travel mode, allowing operators to execute precise maneuvers safely within tight and narrow aisles.
- Vertical Drive Motor:
A compact vertical-mount drive unit delivers a tighter turning radius, higher energy efficiency and light, responsive steering.
- Sealed Motor Enclosure:
The industrial-grade drive motor is fully enclosed to protect against dust and moisture in demanding warehouse conditions.
- Adjustable Balance Wheel System:
Features an adjustable balance wheel to optimize floor contact, reduce uneven wear, and extend the service life of the drive tire.
